Linear Bearing, SPB OPN TWN MOD SYSTEMS

Lead Time:  2500 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • Open Pillow blocks are for use with CONTINUOUS supported shafting
  • For use with SSRA linear Race or Class L shafting
  • Ball Bushing Bearings are included and factory installed in each Pillow Block
  • Replacement part for some Linear Guide assemblies and Slide Tables

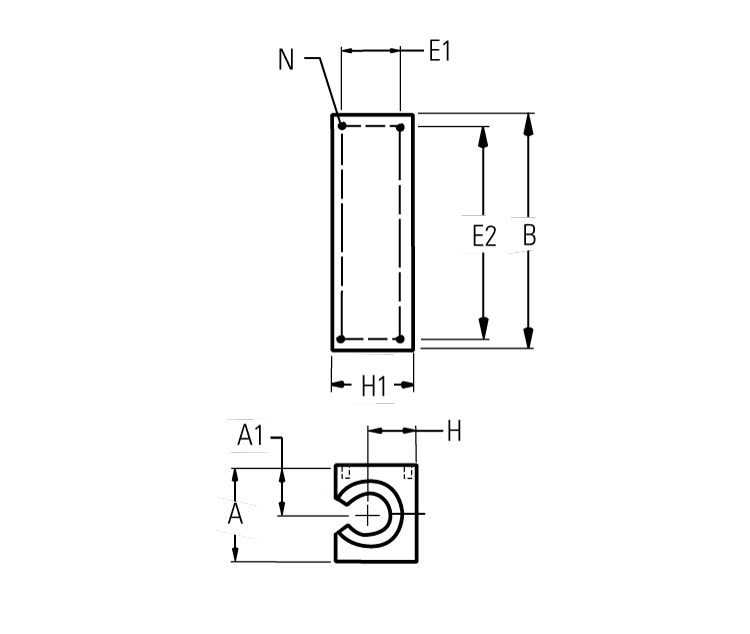

Wymiary

dimensions
WymiarWartość
[d] Shaft, Nominal Diameter0.5 in
[A]1.12 in
[A1]0.687 in
[B]3.5 in
[E1]0.812 in
[E2]3 in
[H]0.67 in
[H1]1.12 in
[N]#8-32
Recomended Bolt#8-32

Specyfikacje

SpecyfikacjeWartość
Closed/OpenOpen
MaterialAluminum; Plastic; Rubber
Single/TwinTwin
Temperature Max185 °F
Weight0.39 lb

Parametry

performance graphic
performance graphic
ParametryWartość
Load Capacity, Dynamic240 lbf
