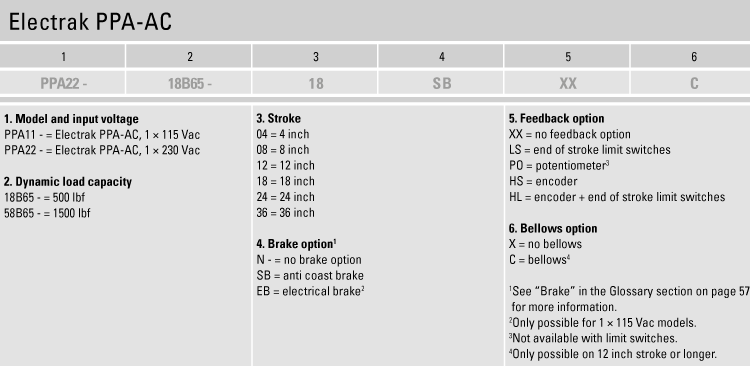

PA11-18B65-04EBHSX

PA11-18B65-04EBHSX
PA11-18B65-04EBHSX

Actuator, PPA, 115 Vac, 500 lbf, 4 in, Encoder, Cable length 19.5 in, Flying Leads, 0.60 in/s Travel Rate @ Full Load

Lead Time:  N/A
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • Strong and versatile heavy duty actuator
  • Highly efficient ball screw drive system
  • Overload clutch for mid and end of stroke protection
  • Motor with thermal switch
  • Maintenance free

Wymiary

dimensions
WymiarWartość
[A]15.7 in
[B]8.8 in
[C]12.736 in
[S]4 in

Specyfikacje

SpecyfikacjeWartość
Anti-rotationNo
BrakeElectric Brake
Cable length19.5 in
ConnectionFlying Leads
End Play, Max0.04 in
FeedbackEncoder
IP RatingIP22
Manual OverrideNo
MaterialCopper; Steel; Zinc; Aluminum; Plastic
Motor ControlNone
Nominal Stroke4 in
Protection, End-of-strokeClutch
Protection, OverloadClutch
Screw TypeBall
Temperature Max150 °F
Temperature Min-15 °F
Voltage115 Vac
Weight14.8 lb

Parametry

ParametryWartość
Duty Cyle30 %
Load, Dynamic500 lbf
Load, Static, Max3000 lbf
Restraining Torque200 in-lbs
Travel Rate @ Full Load0.6 in/s
Travel Rate @ No Load0.63 in/s
