TWN8OPN-XS

Name: TWN8OPN-XS
Price: 343.920000 $

Download Full Catalog

Can't find what you're looking for? Go to the Product Selector

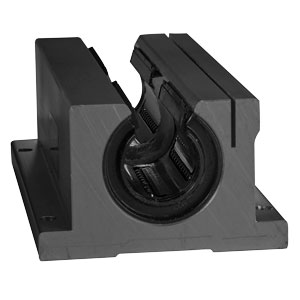

TWN8OPN-XS

Linear Bearing, Ball Bushing, Pillow Block, Super, 0.5 in, Ouvert, Double, Alignement automatique, Ajustable, Oxydation noire (XS); Utiliser avec 0.5 in Diameter Classe L Arbre pour applications prises en charge en continu

Lead Time: 7 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

Open Pillow blocks are for use with CONTINUOUS supported shafting
For use with L class Shafting
Ball Bushing Bearings are included and factory installed in each Pillow Block
Super Ball Bushing bearing pillow blocks are provided with integral, double acting seals unless otherwise specified

Dimensions

Dimension	Valeur
[A]	2 in
[A1]	0.69 in
[A2]	0.75 in
[Alpha] Angle	30 °
[B]	3.5 in
[d] Arbre, diamètre nominal	0.5 in
[E]	0.31 in
[E1]	1.688 in
[E1] Tolérance	± 0.010 in
[E2]	2.5 in
[E2] Tolérance	± 0.010 in
[F1]	0.25 in
[G]	0.56 in
[G1]	1.75 in
[G2] Accès pour lubrification	oil lubricant fitting
[H]	0.687 in
[H] Tolérance	± 0.003 in
[H1]	1.13 in
[N]	0.16 in

Caractéristiques

Caractéristiques	Valeur
Adjustable/Not Adjustable	Ajustable
Black Oxide	Oxydation noire (XS)
Closed/Open	Ouvert
Matériau	Aluminum; Plastic; Rubber
Nombre de circuits à billes	4
Self Alignment	Alignement automatique
Single/Twin	Double
Temperature Max	185 °F
Use with shafting Class	Classe L
Weight	0.489 lb

Performance

Performance	Valeur
Capacité de charge, dynamique	460 lbf

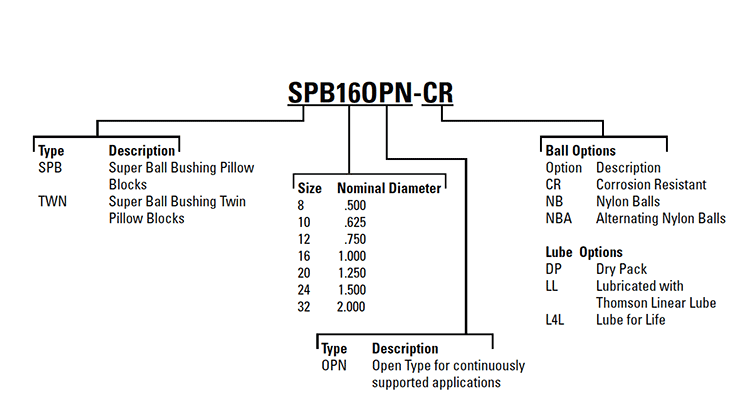

Code de commande

TWN8OPN-XS

Dimensions

Caractéristiques

Performance

Code de commande

Obtenir un devis
