DSRC16BB

DSRC16BB
DSRC16BB

Linear Guide, Dual Shaft, Carriage, Modular, Square, 1 in

Lead Time:  2 Weeks
each Costs associated with shipping, packaging, and import taxes/duty not included.

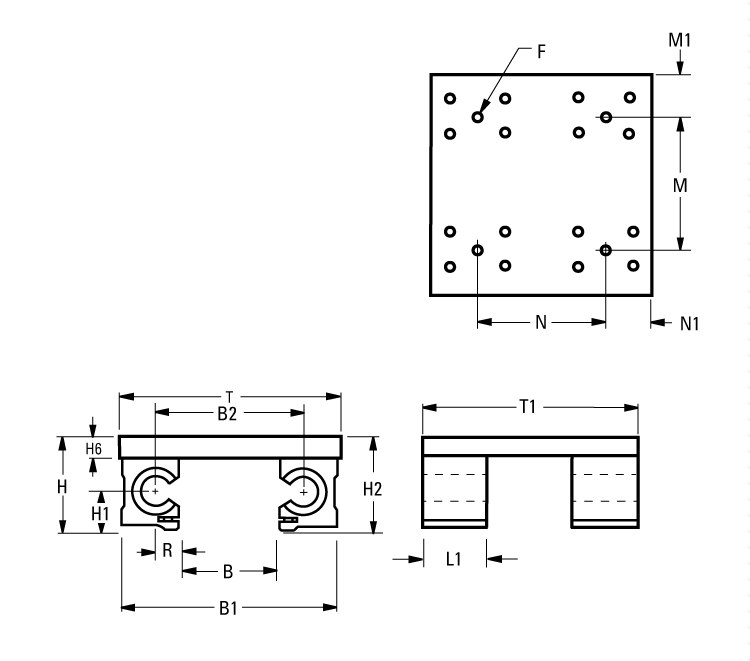

Dimensions

dimensions
DimensionValeur
[B1]7.37 in
[B2]5 in
[d] Arbre, diamètre nominal1 in
[F]1/4-20
[H]3.062 in
[H1]1.375 in
[H2]2.97 in
[H6]0.5 in
[L1]2.63 in
[M]5.5 in
[M1]1 in
[N]6.5 in
[N1]0.5 in
[T]7.5 in
[T1]7.5 in

Caractéristiques

CaractéristiquesValeur
MatériauSteel; Aluminum; Plastic
Shaft StyleDual Shaft
Weight6.8 lb
