S24-17A16-02-CTT

S24-17A16-02-CTT
S24-17A16-02-CTT

Actuador, Electrak 1, 75 lbf, Interruptores de fin de carrera al final de la carrera, Cable length 2 in, Connector

Lead Time:  20 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • Very compact and lightweight
  • Available with end of stroke limit switches or Potentiometer feedback
  • Corrosion resistant housing
  • Self-locking acme screw drive system
  • Maintenance free
  • Ideal for replacement of comparable size pneumatic and hydraulic cylinders

Dimensiones

dimensions

Especificaciones

EspecificacionesValor
Anti-rotationNo
Brakeno (con bloqueo automático)
Cable length2 in
Cable y conectorPackard Electric Pack-Con male 8911773 with terminal 6294511
Cable y conectorConnector
End Play, Max0.036 in
IP RatingIP66
Manual OverrideNo
MaterialCobre; acero; zinc; aluminio; plástico
Motor ControlNone
Protection, End-of-strokeElectronic
Protection, OverloadNone
RealimentaciónInterruptores de fin de carrera al final de la carrera
Screw TypeAcme
Temperature Max150 °F
Temperature Min-15 °F

Rendimiento

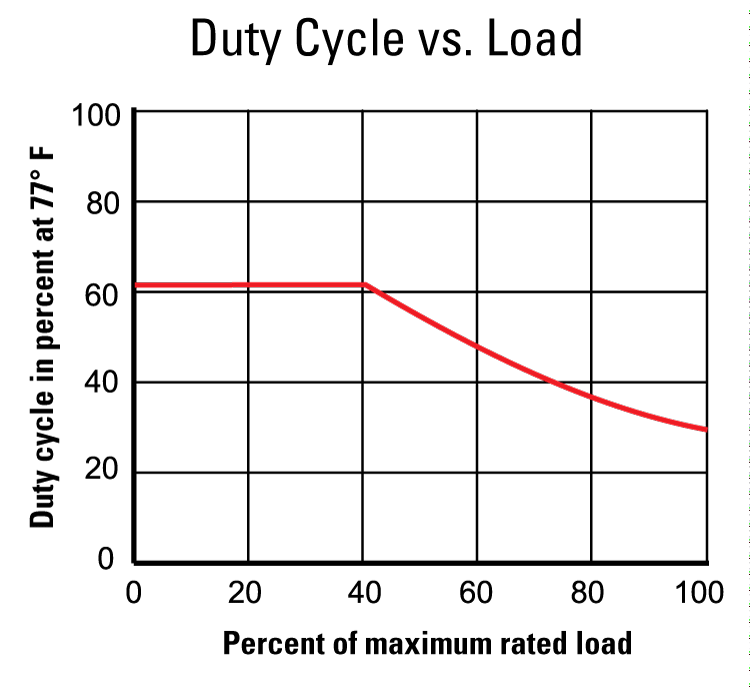

performance graphic

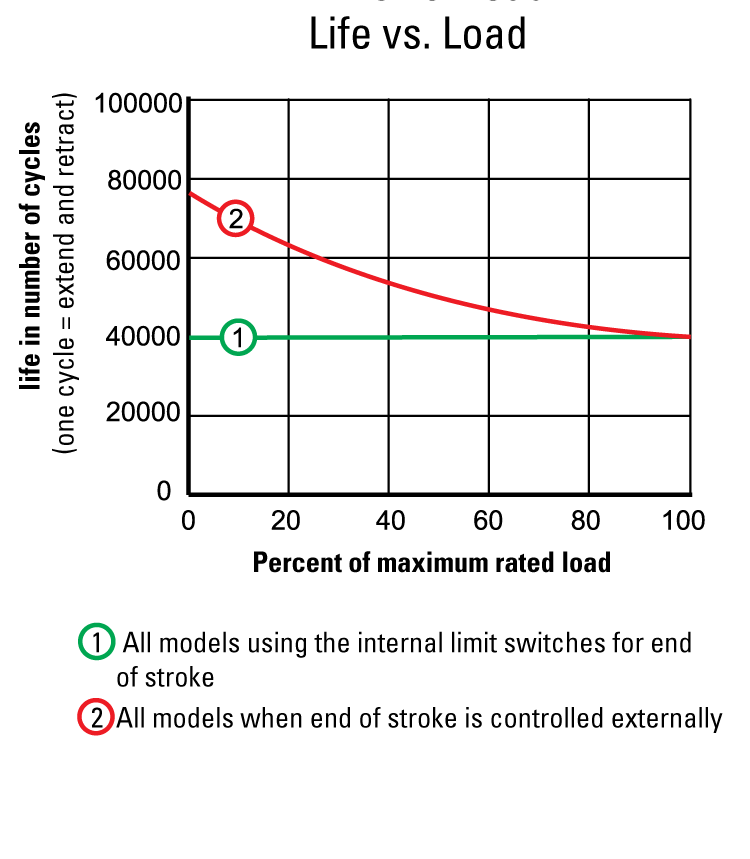

performance graphic
performance graphic
RendimientoValor
Carga, dinámica75 lbf
Carga, estática máx.300 lbf
Duty Cyle25 %
Restraining Torque20 in-lbs
Velocidad de carrera sin carga0.6 in/s
