LC3000N24-200330NX

Name: LC3000N24-200330NX
Price: 1392.560000 $

Download Full Catalog

Can't find what you're looking for? Go to the Product Selector

LC3000N24-200330NX

Columna de elevación, LC, Husillo de bolas Drive, 24 V CC, 200 mm Smáx. (Carrera), 3000 N

Lead Time: N/A

each Costs associated with shipping, packaging, and import taxes/duty not included.

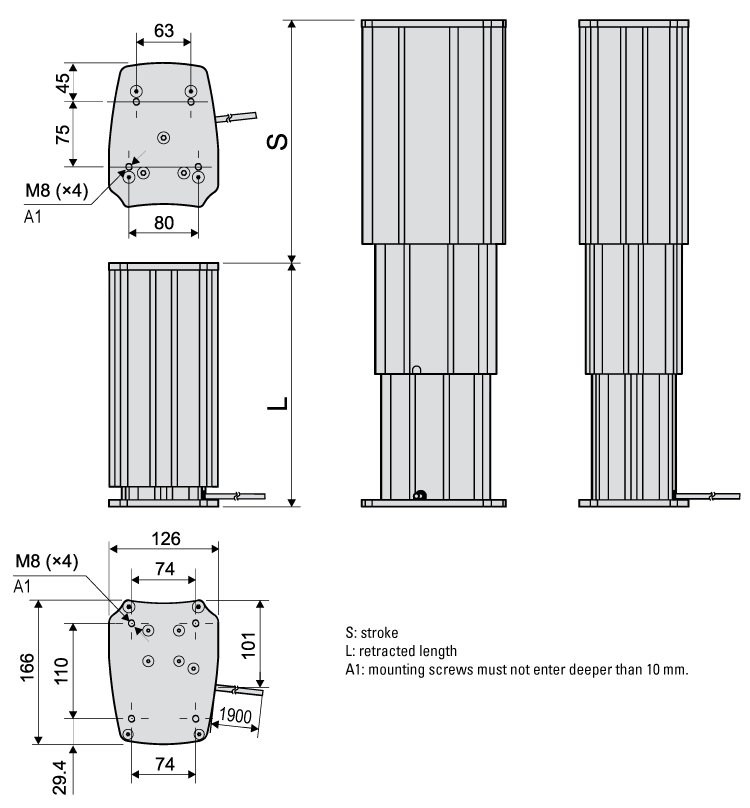

Dimensiones

Unidad	Valor
[L]	330 mm
[S]	200 mm

Especificaciones	Valor
Cable length	1900 mm
Cable y conector	1900mm Cable with Molex Connector
Cable y conector	Molex 8 pin plug
Drive	Husillo de bolas
IP Rating	IP44
Nominal Stroke	200 mm
Realimentación	Sin realimentación
Temperature Max	0 °C
Temperature Min	40 °C
Tensión	24 V CC
Weight	9.7 kg

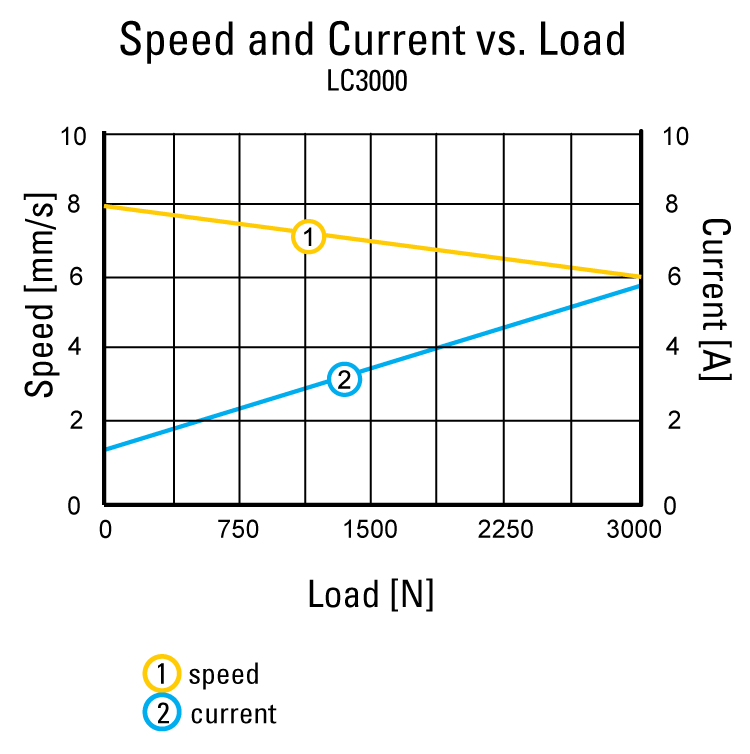

Rendimiento	Valor
Carga, dinámica	3000 N
Duty Cyle	10 %
Velocidad de carrera con carga completa	6 mm/s
Velocidad de carrera sin carga	8 mm/s
