195-9725

Solo husillo esférico, Rosca esmerilada, KGS Estilo, 50 mm X 20 mm, RH, Acero, Número de arranques 2, 6000 mm Long

each Costs associated with shipping, packaging, and import taxes/duty not included.

Screw only, No Ball nut

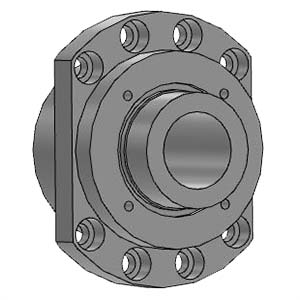

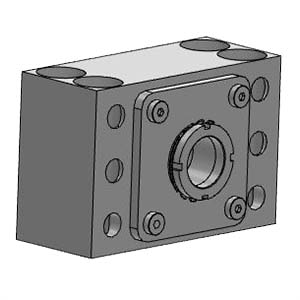

Screws must be machined to fit into end support bearings. Screws can be ordered with ends machined, assembled with ball nuts and/or support bearings.
Please submit a drawing or description for a quotation on a machined screw or screw and nut assembly.
Additional ball screw coatings (thin dense chrome, black oxide, manganese phosphate) are available as a custom item.
Our standard catalog ball screws feature a high luster polished and oiled finish, which provides smoother operation and a high quality look and feel.

Dimensiones

Unidad	Valor
[d3] Bearing Journal Diameter, Recommended	40 mm
Diámetro de husillo, nominal	50 mm
Diámetro del rodamiento de bolas	7.144 mm
Diámetro raíz	43.99 mm
Diámetro, mayor	49.5 mm
Longitud	6000 mm
Número de arranques	2
recorrido por revolución del eje	20 mm
