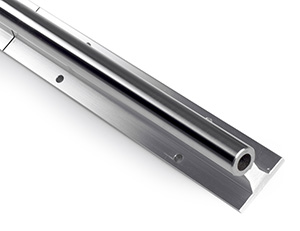

Shaft Support, Continuous Support Assembly, Profilo standard, Tubolare (TU), Preforato (PD), Classe L, Aluminum & Steel 52100, Taglio a misura (CTL), 174 in Lungo, Utilizzare con 1 in Nominal Diameter Open Bushing Bearings

Lead Time:  Contact Factory

  • Shaft supports simplify mounting of Thomson 60 Case shafts. Users of Thomson 60 Case shafting should consider the use of these shaft supports
  • These supports can be used horizontally or vertically.
  • Bolt down from top through the flange
  • Class L 60 Case, Tubular Steel, shaft included
  • Y1=Y2 is standard. Special Y1 can be specified by customer.

Dimensioni

dimensions
Unità di misuraValore
[A]2.125 in
[A1]1.063 in
[A2]0.5 in
[d] Albero, diametro nominale1 in
[E1]1.5 in
[E1] Tolleranza± 0.010 in
[F1]0.25 in
[H]1.75 in
[H] Tolleranza± 0.002 in
[N]0.281 in
[X] Dim.6 in
[Y]3 in
Bullone raccomandato1/4
Lunghezza174 in

Specificazioni

SpecificazioniValore
ClasseClasse L
Material, ShaftSteel 52100 Tubular
Material, SupportAluminum
MaterialeAluminum & Steel 52100
Option Predrilled (PD)Preforato (PD)
Option Tubular (TU)Tubolare (TU)
Support StyleProfilo standard
Weight3.3 lb/ft
