SP24-17A16-02

SP24-17A16-02
SP24-17A16-02

Actuator, Electrak 1, 24 VCC, 340 N, 58.7 mm, Potenziometro, Cable length 2 in, Connector (Motor), Flying Leads (Feedback), 7 mm/s Velocità di corsa a pieno carico

Lead Time:  20 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • Very compact and lightweight
  • Potentiometer feedback
  • Corrosion resistant housing
  • Self-locking acme screw drive system
  • Maintenance free
  • Ideal for replacement of comparable size pneumatic and hydraulic cylinders

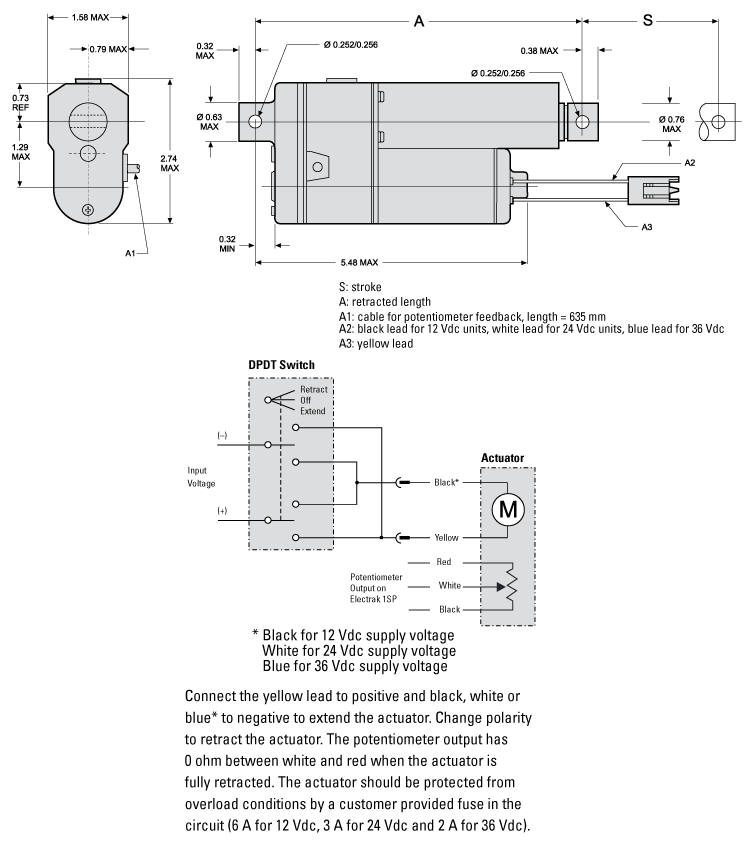

Dimensioni

dimensions
Unità di misuraValore
[A]197.9 mm
[S]58.7 mm

Specificazioni

SpecificazioniValore
Anti-rotationSì
Brakeno (autobloccante)
Cable length2 in
Cavo e connettorePackard Electric Pack-Con male 8911773 with terminal 6294511
Cavo e connettoreConnector (Motor), Flying Leads (Feedback)
End Play, Max0.036 in
IP RatingIP66
Manual OverrideNo
MaterialeCopper; Steel; Zinc; Aluminum; Plastic
Motor ControlNone
Nominal Stroke50 mm
Protection, End-of-strokeElectronic
Protection, OverloadNone
RetroazionePotenziometro
Screw TypeFilettatura trapezia
Temperature Max150 °F
Temperature Min-15 °F
Tensione24 VCC
Weight1.2 lb

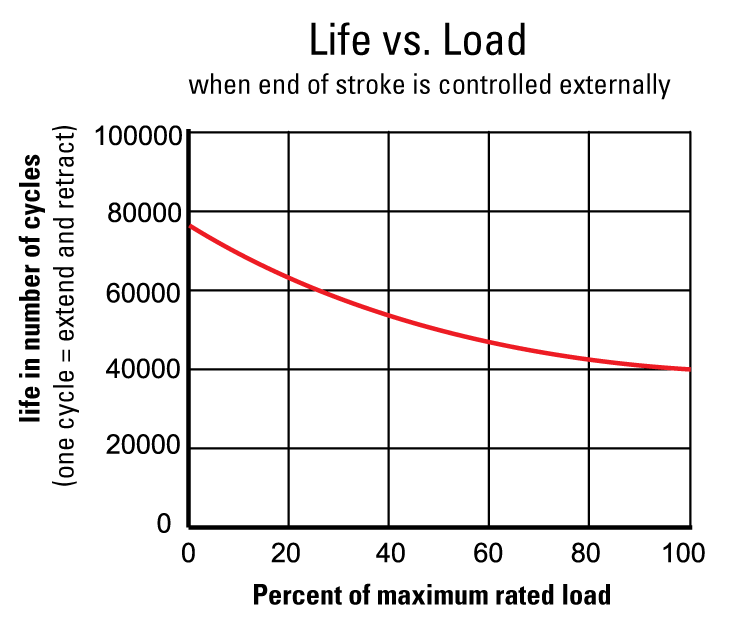

Prestazioni

performance graphic
performance graphic
performance graphic
PerformanceValore
Carico, dinamico340 N
Carico, statico massimo1300 N
Duty Cyle25 %
Restraining Torque0 in-lbs
Velocità di corsa a pieno carico7 mm/s
Velocità di corsa in assenza di carico14 mm/s
