R2501-3

R2501-3
R2501-3

FLANGE

Lead Time:  N/A

  • Flanges provide an easy, low cost method to mount the load square and concentric to the ball screw
  • See Dimensional drawing for part number specific demensions

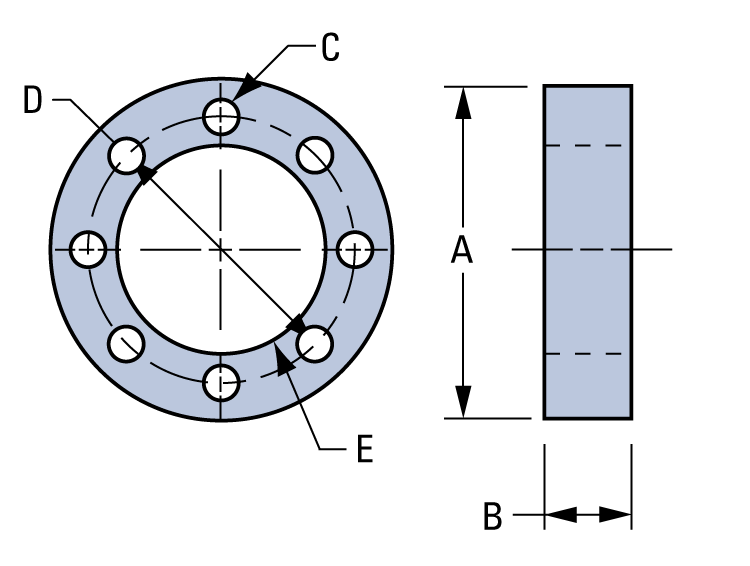

Dimensioni

dimensions
Unità di misuraValore
[A]6.03 in
[B]1.785 in
[C]0.656 in
[D]5 in
[TH]3 5/8-12 UN-2A

Specificazioni

SpecificazioniValore
MaterialeSteel
Temperature Max300 °F
Weight3.5 kg
