2DB12V0N0480-300N001A0A09, Linear Unit, 2DB, Vite a sfere Drive, Sfera Guide, 0.0002 in Repeatability, Precaricato, 38.98 in Stroke, Slitta standard singola, 0.200 in Travel Per Shaft Rev, Inline, 10 in/s Maximum Linear Speed

Lead Time:  4 Weeks
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • Integrated dual-rail, webbed shaft ideal for loading in all orientations
  • Low-profile height
  • Super Smart bushings with low friction for smooth motion
  • Easy mounting
  • Corrosion resistant options available
  • Integral Ball Screw assembly

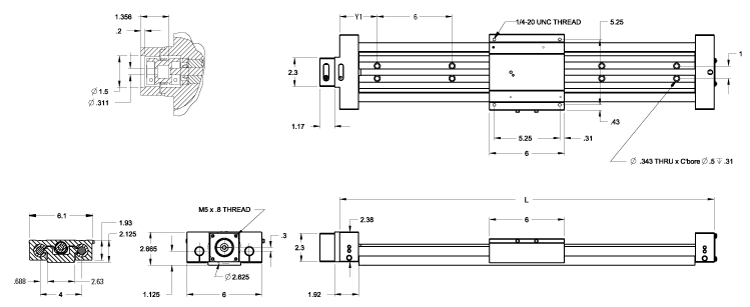

Dimensioni

dimensions
Unità di misuraValore
[L]48 in
Smax (corsa)38.98 in
Travel Per Shaft Rev0.2 in

Specificazioni

SpecificazioniValore
Carriage TypeSlitta standard singola
DriveVite a sfere
GuideSfera
Option, BearingStandard
Option, HardwareStandard
Option, Profile CoverNo Cover
Option, SensorBoth (Home & End) limit switch
Option, Shaft CoatingStandard
Opzione di protezioneStandard Protection
Profile size (width × height)6 x 2.125 in
Screw Nut TypePrecaricato
Shaft ConfigurationInline
Shaft OrientationInline
Shaft QuantityDouble Shafts
Weight8.3 kg

Prestazioni

PerformanceValore
Input speed, maximum3000 RPM
Maximum Acceleration385 in/s²
Maximum Linear Speed10 in/s
Repeatability0.0002 in
