XA162536-DD
Can't find what you're looking for? Go to the Product Selector

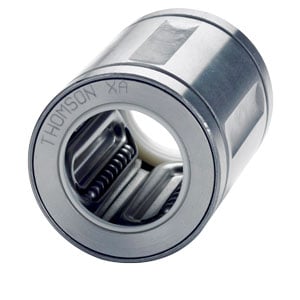

Linear Bearing, Ball Bushing only, Extra Precision Steel, 1 in, Closed, Not Self-aligning, Integral Seals both ends, XA Grade; Use with 1 in Diameter Class L Shaft in end supported applications
Lead Time:
5 Days
- Precision Steel Ball Bushing bearings offer great improvements in efficiency, productivity, and accuracy over high-friction plain bearings flat-ways.
- The all-steel design makes the bearing product line perfect for replacing plain bearings in high temperature applications.
- The steel sleeve anti-friction recirculating ball bushing provides rigid low drag movement – ~100x lower drag coefficient than a plain contact bearing.
- A coefficient of friction as low as .001. When replacing high friction plain bearings, Precision Steel Ball Bushing Bearings dramatically improve machine productivity and efficiency.
- For use with L class Shafting.
| Dimension | Value |
|---|---|
| [d] Shaft, Nominal Diameter | 1 in |
| [C] Length Along Axis | 2.235 / 2.250 in |
| [C1] | 1.741 / 1.759 in |
| [C2] Min | 0.068 in |
| [D] Recommended Housing Bore | 1.5625 / 1.5630 in |
| [D], Nominal | 1.5625 in |
| Performance | Value |
|---|---|
| Load Capacity, Dynamic | 350 lbf |
