AA22-05B65M30M0NPO

AA22-05B65M30M0NPO
AA22-05B65M30M0NPO

Actuator, LA24, 230 Vac, 2250 N, 300 mm, Potentiometer, Cable length 600 mm, Flying Leads, Adapter at 0° (Standard), 37 mm/s Travel Rate @ Full Load


  • Robust, strong and reliable
  • Corrosion free aluminium cover tube
  • Stainless steel extension tube
  • Withstands very harsh environments
  • Trunnion mounting possible
  • Overload clutch for mid and end of stroke protection
  • T-slot grooves in the cover tube for magnetic sensors
  • Heavy duty motor with thermal switch
  • Anti-coast brake for repeatable positioning on ball screw models, optional with acme screw

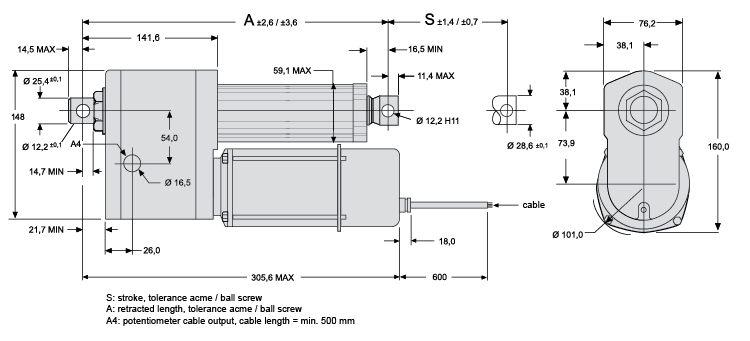

Dimensions

dimensions
DimensionValue
[A]574.6 mm
[S]300 mm

Specifications

SpecificationsValue
Adapter PositionAdapter at 0° (Standard)
Anti-rotationYes
BrakeIntegral Holding Brake
Cable length600 mm
ConnectionFlying Leads
FeedbackPotentiometer
Gear Reduction5:1
IP RatingIP45
Manual OverrideNo
MaterialCopper; Steel; Zinc; Aluminum; Plastic
Motor ControlNone
Nominal Stroke300 mm
Protection, End-of-strokeClutch
Protection, OverloadClutch
Screw TypeBall
Temperature Max65 °C
Temperature Min-25 °C
Voltage230 Vac
Weight9.1 kg

Performance

PerformanceValue
Duty Cyle25 %
Load, Dynamic2250 N
Load, Static, Max18000 N
Restraining Torque0 Nm
Travel Rate @ Full Load37 mm/s
Travel Rate @ No Load61 mm/s
