WM08S-50010
Can't find what you're looking for? Go to the Product Selector
WM08S050-00330-00680CS-000, Linear Unit, WM80, Ball Screw Drive, Ball Guide, 0.02 mm Repeatability, Non-Preloaded, 330 mm Stroke, 680 mm Overall Length, Single Short Carriage, 50 mm Travel Per Shaft Rev, Single Shaft With Keyway, 2.5 m/s Maximum Linear Speed, Superseded
Lead Time:
5 Weeks
- Can be installed in any orientation
- Patented guide system
- Patented self-adjusting plastic cover band
- Patented screw support system

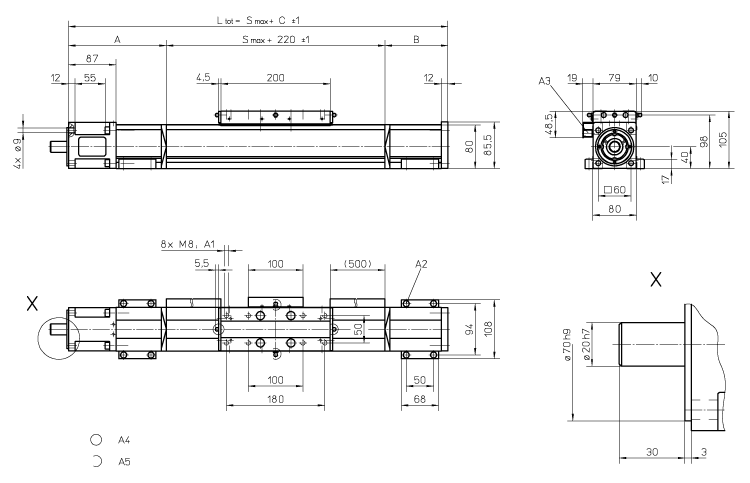

| Dimension | Value |
|---|---|
| [Smax] Stroke | 330 mm |
| Ltot | 680 mm |
| Travel Per Shaft Rev | 50 mm |
