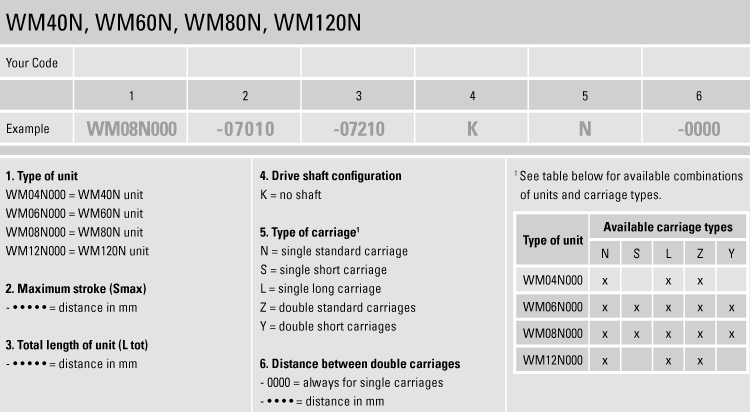

WM08N000-02535-02935-KN0000S1-
Can't find what you're looking for? Go to the Product Selector

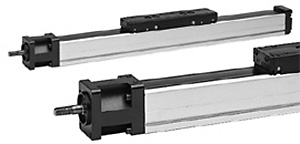

Linear Unit, WM80, Non Driven Unit Drive, Ball Guide, 2535 mm Stroke, 2935 mm Overall Length, Single Standard Carriage, Wash Down Protection, Superseded
Lead Time:
5 Weeks
- Can be installed in any orientation
- Patented guide system
- Patented self-adjusting plastic cover band
- Non driven unit

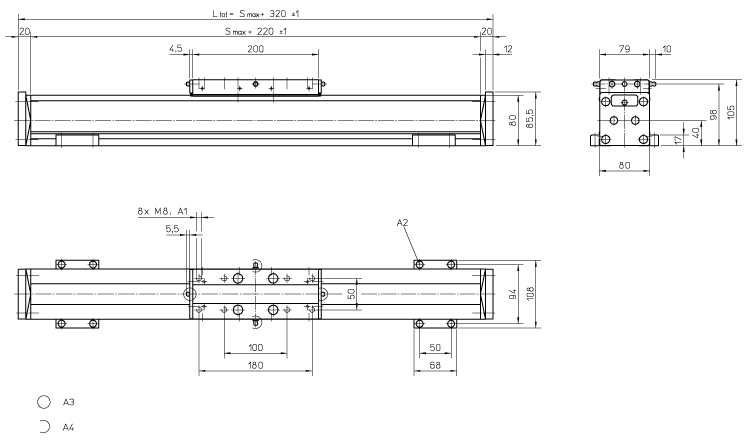

| Dimension | Value |
|---|---|
| [Smax] Stroke | 2535 mm |
| Ltot | 2935 mm |
