WM06X005-00300-01100-AS0000-31
Can't find what you're looking for? Go to the Product Selector
Linear Unit, WM60, Ball Screw, Left/Right Drive, Ball Guide, 300 mm Stroke, 1100 mm Overall Length, Each Direction, Short Carriage , 5 mm Travel Per Shaft Rev, Single Shaft Without Keyway, 0.25 m/s Maximum Linear Speed, Superseded
Lead Time:
5 Weeks
- Can be installed in any orientation
- Patented guide system
- Patented self-adjusting plastic cover band
- Patented screw support system

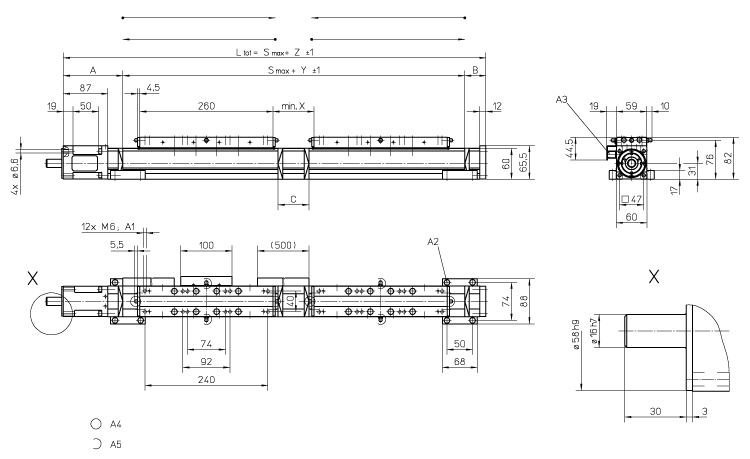

| Dimension | Value |
|---|---|
| [Smax] Stroke | 300 mm |
| Ltot | 1100 mm |
| Travel Per Shaft Rev | 5 mm |
