WM06D020-00700-01450-AL0000-59
Can't find what you're looking for? Go to the Product Selector
Linear Unit, WM60, Ball Screw Drive, Ball Guide, 0.01 mm Repeatability, Double nut Preload, 700 mm Stroke, 1450 mm Overall Length, Single Long Carriage, 20 mm Travel Per Shaft Rev, Single Shaft Without Keyway, 1 m/s Maximum Linear Speed, Superseded
Lead Time:
5 Weeks
- Can be installed in any orientation
- Patented guide system
- Patented self-adjusting plastic cover band
- Patented screw support system

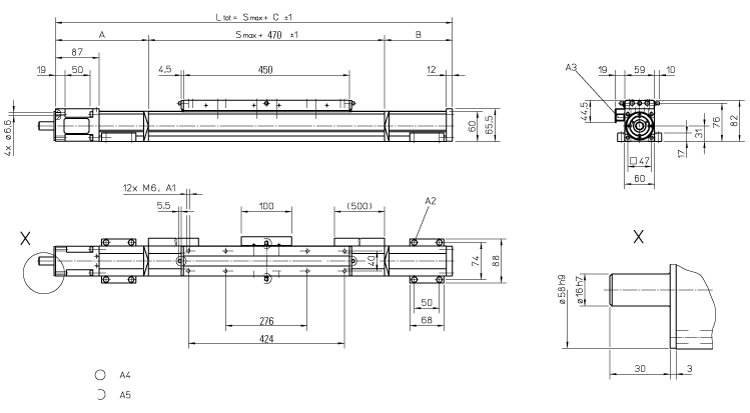

| Dimension | Value |
|---|---|
| [Smax] Stroke | 700 mm |
| Ltot | 1450 mm |
| Travel Per Shaft Rev | 20 mm |
