Linear Unit, WM40, Ball Screw Drive, Ball Guide, 0.01 mm Repeatability, Double nut Preload, 300 mm Stroke, 620 mm Overall Length, Single Long Carriage, 5 mm Travel Per Shaft Rev, Single Shaft Without Keyway, 0.25 m/s Maximum Linear Speed, Superseded

Lead Time:  5 Weeks

  • Can be installed in any orientation
  • Patented guide system
  • Patented self-adjusting plastic cover band
  • Patented screw support system

Dimensions

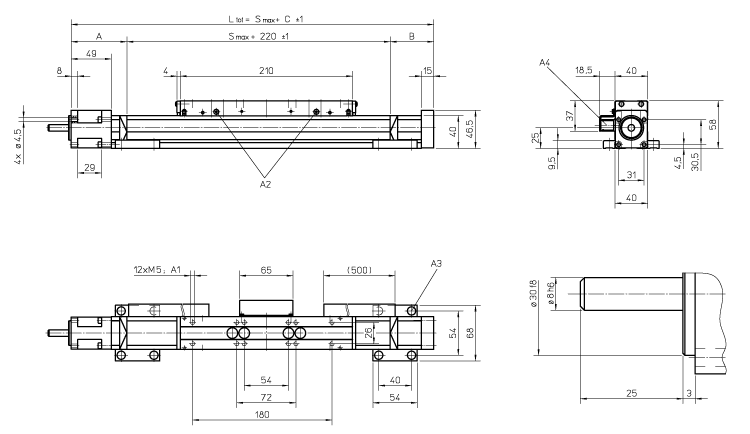

dimensions
DimensionValue
[Smax] Stroke300 mm
Ltot620 mm
Travel Per Shaft Rev5 mm

Specifications

SpecificationsValue
Carriage TypeSingle Long Carriage
DriveBall Screw
GuideBall
Profile size (width × height)40 x 40 mm
Protection OptionStandard Protection
Screw Nut TypeDouble nut Preload
Shaft ConfigurationSingle Shaft Without Keyway
Shaft OrientationInline
Shaft QuantitySingle Shaft
Weight3.4 kg

Performance

PerformanceValue
Input speed, maximum3000 RPM
Maximum Acceleration20 m/s²
Maximum Linear Speed0.25 m/s
Repeatability0.01 mm
