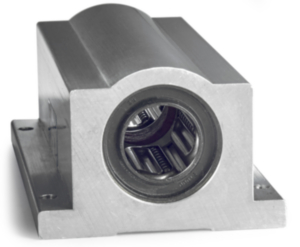

TWN10-ABB
Can't find what you're looking for? Go to the Product Selector
Linear Bearing, Ball Bushing, Pillow Block, Precision Steel, 0.625 in, Closed, Twin, Not Self-aligning, ABB; Use with 0.625 in Diameter Class S Shaft in end supported applications
Lead Time:
10 Days
- Closed Pillow blocks are for use with END supported shafting.
- For use with Class S shafting
- Ball Bushing Bearings are included and factory installed in each Pillow Block
- Super Ball Bushing bearing pillow blocks are provided with integral, double acting seals unless otherwise specified
| Dimension | Value |
|---|---|
| [d] Shaft, Nominal Diameter | 0.625 in |
| [A] | 2.5 in |
| [A2] | 1.75 in |
| [B] | 4 in |
| [E1] | 2.125 in |
| [E1] Tolerance | ± 0.010 in |
| [E2] | 3 in |
| [E2] Tolerance | ± 0.010 in |
| [F] | 1.44 in |
| [F1] | 0.28 in |
| [G] | 0.85 in |
| [G1] | 2 in |
| [G2] Access for Lubrication | 1/4-28 |
| [H] | 0.875 in |
| [H1] | 1.63 in |
| [N] | 0.19 in |
| Performance | Value |
|---|---|
| Load Capacity, Dynamic | 300 lbf |
