Lead Nut Only, SNAB Style, 0.3125 in X 0.250 in, Anti-Backlash, LH, Acetal, 50 lbf Design Load

Lead Time:  2500 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • The SNAB Model has the greatest design flexibility allowing anti‑backlash assemblies through 1” diameters.
  • All SNABs are made from our internally lubricated Acetal providing excellent lubricity and very low wear.

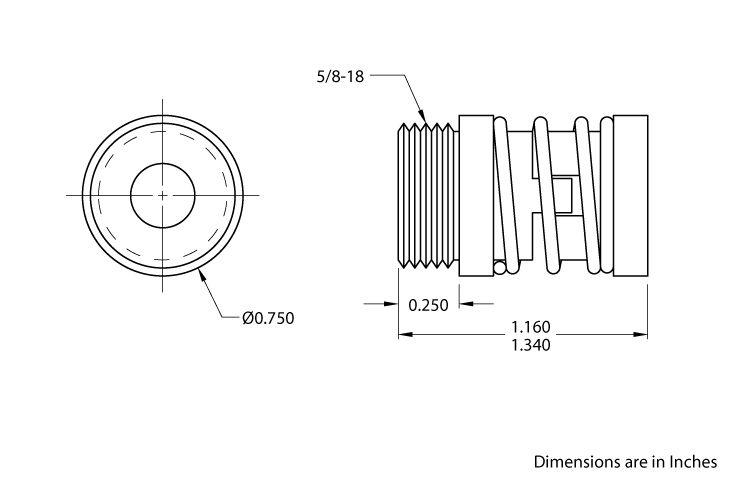

Dimensions

dimensions
DimensionValue
Diameter, Nominal Screw0.3125 in
Nut Dia0.75 in
Nut Length1.16 in
travel per shaft rev0.25 in

Specifications

SpecificationsValue
Drag Torque2-4 oz-in
Efficiency %72
MaterialAcetal
PreloadAnti-Backlash
Preload Force2-5 lbf
Temperature Max180 °F
Thread DirectionLH

Performance

PerformanceValue
Design Load50 lbf
Load, Static, Maximum350 lbf
