SNAB2-2516XL

SNAB2-2516XL
SNAB2-2516XL

Lead Nut Only, SNAB Style, 0.25 in X 0.125 in, Anti-Backlash, LH, Acetal, 25 lbf Design Load

Lead Time:  2500 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • The SNAB Model has the greatest design flexibility allowing anti‑backlash assemblies through 1” diameters.
  • All SNABs are made from our internally lubricated Acetal providing excellent lubricity and very low wear.

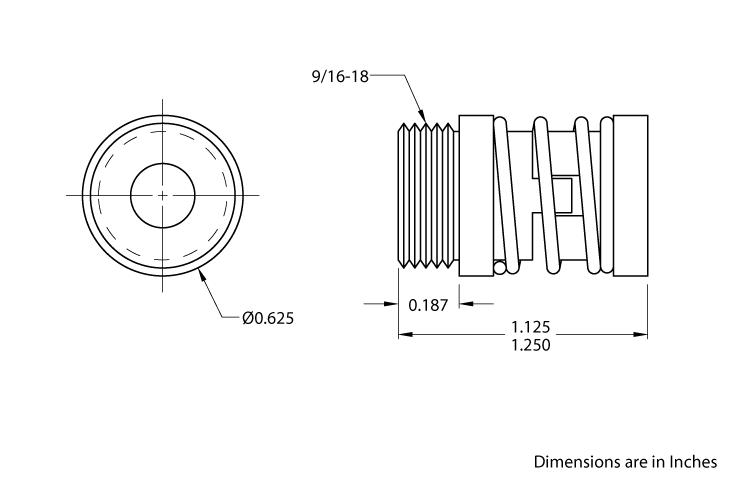

Dimensions

dimensions
DimensionValue
Diameter, Nominal Screw0.25 in
Nut Dia0.625 in
Nut Length1.125 in
travel per shaft rev0.125 in

Specifications

SpecificationsValue
Drag Torque2-4 oz-in
Efficiency %64
MaterialAcetal
PreloadAnti-Backlash
Preload Force1-3 lbf
Temperature Max180 °F
Thread DirectionLH

Performance

PerformanceValue
Design Load25 lbf
Load, Static, Maximum225 lbf
