Lead Nut Only, SNAB Style, 0.500 in X 1.500 in, Anti-Backlash, LH, Acetal, 150 lbf Design Load

Lead Time:  2500 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • The SNAB Model has the greatest design flexibility allowing anti‑backlash assemblies through 1” diameters.
  • All SNABs are made from our internally lubricated Acetal providing excellent lubricity and very low wear.

Dimensions

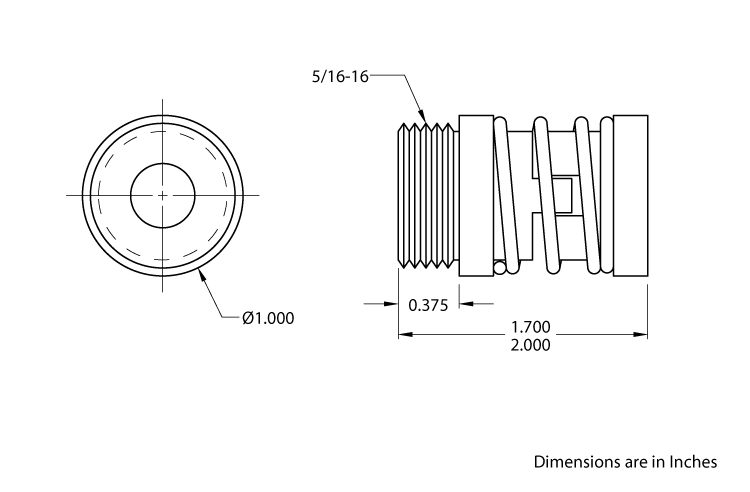

dimensions
DimensionValue
Diameter, Nominal Screw0.5 in
Nut Dia1 in
Nut Length1.7 in
travel per shaft rev1.5 in

Specifications

SpecificationsValue
Drag Torque5-8 oz-in
Efficiency %82
MaterialAcetal
PreloadAnti-Backlash
Preload Force4-9 lbf
Temperature Max180 °F
Thread DirectionLH

Performance

PerformanceValue
Design Load150 lbf
Load, Static, Maximum750 lbf
