PRN10110

PRN10110

Can't find what you're looking for? Go to the Product Selector

Product Selector
PRN10110
Ball Nut

Ball Nut, 0.875 in X 0.200 in, Wiper Included, Round, No Safety Feature, Adjustable Preload, Internal, 1375 lbf

Lead Time:  16 Weeks Lead times may increase with higher quantities. Lead time displayed in business days.
$1408.92 each Costs associated with shipping, packaging, and import taxes/duty not included.
CAD Model
Add to Cart
  • Nut Only
  • Quality Tested For Reliable Perfomance
  • Dependable Accuracy and Repeatability At An Economical Price

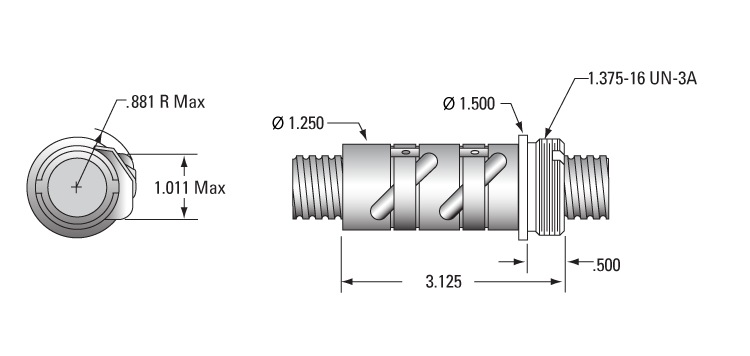

Dimensions

Dimensions
Dimension Value
Unit Of Measure All length values in: inches

Specifications

Specification Value
Diameter 0.875 in
Lead 0.200 in
Nut Material Alloy Steel
Nut Style PRN
Wiper Included
Screw Part Number XPR8720R96
Number Of Starts 1
Total Weight 1.10 lbs
Safety Feature BSN.SafetyFeatureType.

Performance

Performance Value
Load, Dynamic 6,116 N (1,375 lbf)
Load, Static 47,952 N (10,780 lbf)
Torque Rating 0.0350 in-lb
