K2EP1.4G05-24V-BRL-08 - Product Obsolete
Product K2EP1.4G05-24V-BRL-08 is now an obsolete item.
Can't find what you're looking for? Go to the Product Selector

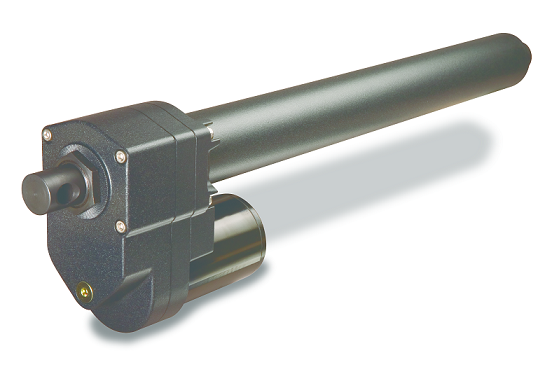

Actuator, Warner Linear B-Track K2, 24 Vdc, Max Stroke Length: 8 in, Control: Adjustable Limits + Potentiometer Output
Lead Time:
16 Weeks
Lead times may increase with higher quantities. Lead time displayed in business days.
- Protective coatings and O-ring seals throughout.
- Hybrid Acme style nut and screw design or Ball Screw and brake design.
- Ball detent over load clutch.
- Thermal overload incorporated into the motor.
- Heavy wall construction
- Heat treated gears
- Protective coatings and O-ring seals throughout.
- Hybrid Acme style nut and screw design or Ball Screw and brake design.
- Ball detent over load clutch.
- Thermal overload incorporated into the motor.
- Heavy wall construction
- Heat treated gears
- Protective coatings and O-ring seals throughout.
- Hybrid Acme style nut and screw design or Ball Screw and brake design.
- Ball detent over load clutch.
- Thermal overload incorporated into the motor.
- Heavy wall construction
- Heat treated gears

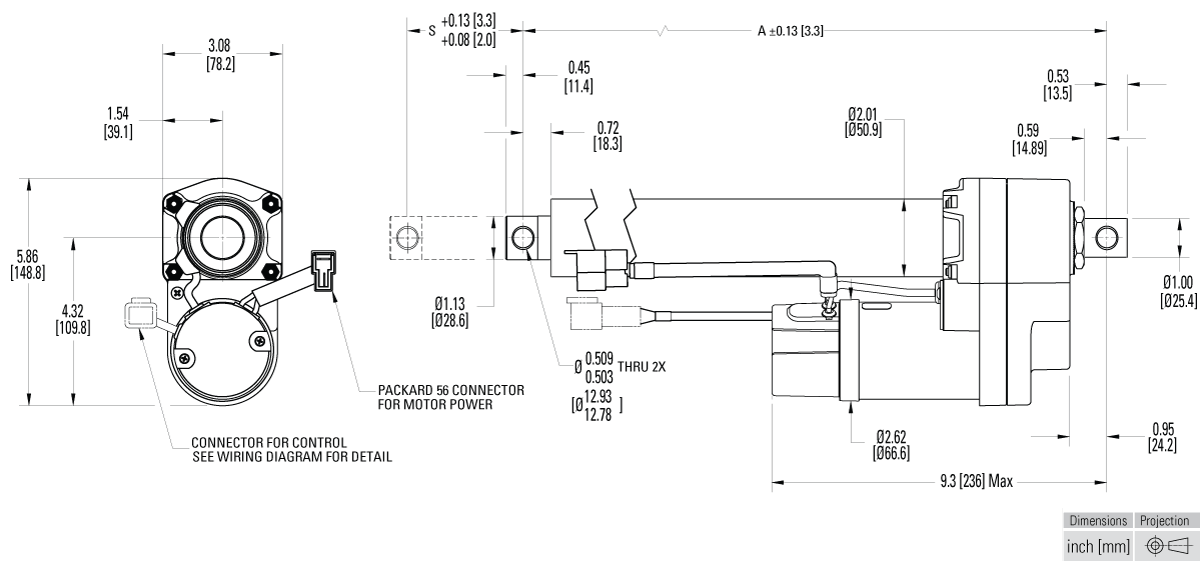

| Dimension | Value |
|---|---|
| A | 363.7 mm (14.319 in) |
| S | 203.0 mm (7.992 in) |
