Lead Nut Only, GSF Style, Flanged, 10 mm X 12 mm, Non-Preloaded, RH, Acetal nut body with all stainless steel internal components, 311.4 N Design Load

Lead Time:  2500 Days

  • Nut only, Screw is a separate part number
  • Composite nut materials offer outstanding lubricant capability and low wear

Dimensions

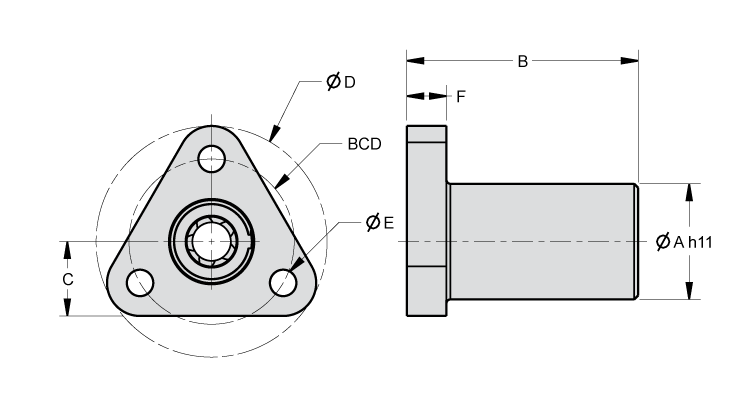

dimensions
DimensionValue
[A] Diameter22 mm
[B]44 mm
[BCD]30 mm
[C]14 mm
[D]44 mm
[E]5 mm
[F]7 mm
Diameter, Nominal Screw10 mm
travel per shaft rev12 mm

Specifications

SpecificationsValue
Efficiency %77
MaterialAcetal nut body with all stainless steel internal components
PreloadNon-Preloaded
Temperature Max150 °F
Thread DirectionRH

Performance

PerformanceValue
Design Load311.4 N
Max Moment Load15.5 Nm
