D12-21GB-XXDS

Name: D12-21GB-XXDS
Price: 486.000000 $

Download Full Catalog

Can't find what you're looking for? Go to the Product Selector

D12-21GB-XXDS

Actuator, Rotary, 12 Vdc, 100 in-lbs, No Feedback, Cable length 7 in, Connector

Lead Time: 30 Days

each Costs associated with shipping, packaging, and import taxes/duty not included.

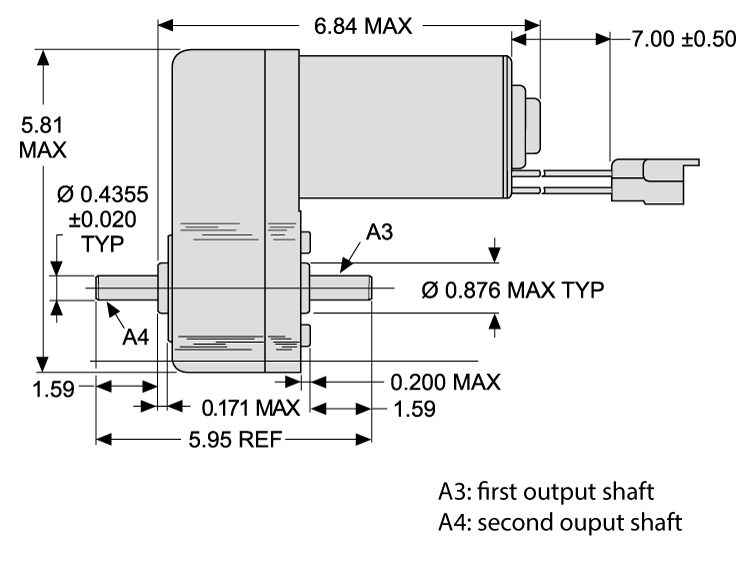

Dimensions

Specifications	Value
Cable length	7 in
Connection	Connector
Connector Type	Packard Electric 56 series 2984883 with terminal 2962987
Feedback	No Feedback
Gear Reduction	21:1
IP Rating	IP56
Manual Override	No
Material	Copper; Steel; Zinc; Aluminum; Plastic
Motor Control	None
Temperature Max	150 °F
Temperature Min	-15 °F
Voltage	12 Vdc
Weight	7.7 lb

Performance	Value
Duty Cyle	25 %
Load, Dynamic	100 in-lbs
Load, Static, Max	100 in-lbs
Rotational Speed @ maximum load	80 RPM
Rotational Speed @ no load	200 RPM
