ADAPTER-KARDAN KAR-2 5010
- Trunion adapter for mounting a flanged ball or lead screw nut.
- Hole pattern in accordance with DIN69051

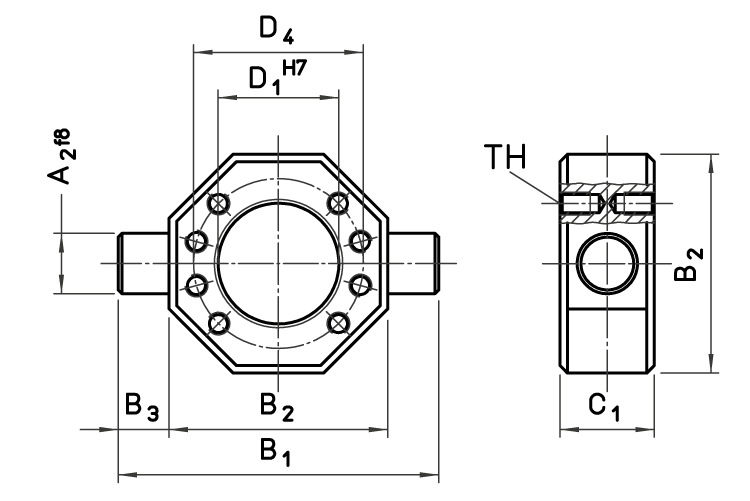

| Dimension | Value |
|---|---|
| [A2] | 40 mm |
| [B1] | 165 mm |
| [B2] | 115 mm |
| [B3] | 25 mm |
| [C1] | 50 mm |
| [D1] | 75 mm |
| [D4] | 93 mm |
| [TH] | M10x16 |
