KGM-G-2005-RH-E-KK, Ball Nut Only, ZG Style, 20 mm X 5 mm, RH, Wiper, 0.09 Nut Backlash, Maximum, Steel, 14.8 kN Load, Dynamic
- Nut Only, Screw Sold Separately
- Integral wiper included as standard
- Available in three preload classes (Type Z1, Z2, Z3) Z1 – light preload to 1-2% Z2 – no preload, clearance held to max indicated in table (standard unless specified) Z3 – no preload, clearance held to max .05mm
- Part number 0215050307 is sold in Europe. This same product is sold in North America under part number 7832781

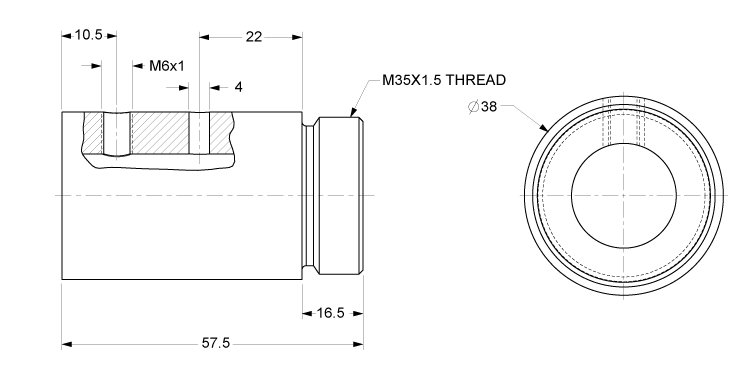

| Dimension | Value |
|---|---|
| [D1] | 38 mm |
| [D12] | M6x1 |
| [D13] | 4 mm |
| [L] | 57.5 mm |
| [L11] | 16.5 mm |
| [L12] | 10.5 mm |
| [L13] | 22 mm |
| [TH] | M35x1.5 |
| Ball Bearing Diameter | 3.5 mm |
| Diameter, Nominal Screw | 20 mm |
| Nut Backlash, Maximum | 0.09 mm |
| travel per shaft rev | 5 mm |
| Performance | Value |
|---|---|
| Load, Dynamic | 14.8 kN |
| Load, Static, Maximum | 20.7 kN |
| Maximum Acceleration | 5 m/s² |
