WH12Z260-01745-02350-BN0000-92

Linear Unit, WH120, Belt Drive, Wheel Guide, 0.05 mm Repeatability, 1745 mm Stroke, 2350 mm Overall Length, Single Standard Carriage, 260 mm Travel Per Shaft Rev, Shaft On Right Side, 10 m/s Maximum Linear Speed, Superseded

Lead Time: 4 Weeks

Can be installed in any orientation
Speed up to 10 m/s
Belt Driven

Boyutlar

Boyut	Değer
[Smax] Stroke	1745 mm
Ltot	2350 mm
Travel Per Shaft Rev	260 mm

Boyut	Değer
[Smax] Stroke	1745 mm
Ltot	2350 mm
Travel Per Shaft Rev	260 mm

Özellikler	Değer
Belt Type	50ATL10
Carriage Type	Single Standard Carriage
Drive	Belt
Guide	Wheel
Profile size (width × height)	120 x 110 mm
Protection Option	Standard Protection
Shaft Configuration	Shaft On Right Side
Shaft Orientation	Right Angle
Shaft Quantity	Single Shaft
Weight	51.1 kg

WH12Z260-01745-02350-BN0000-92

Boyutlar

Özellikler

Performans

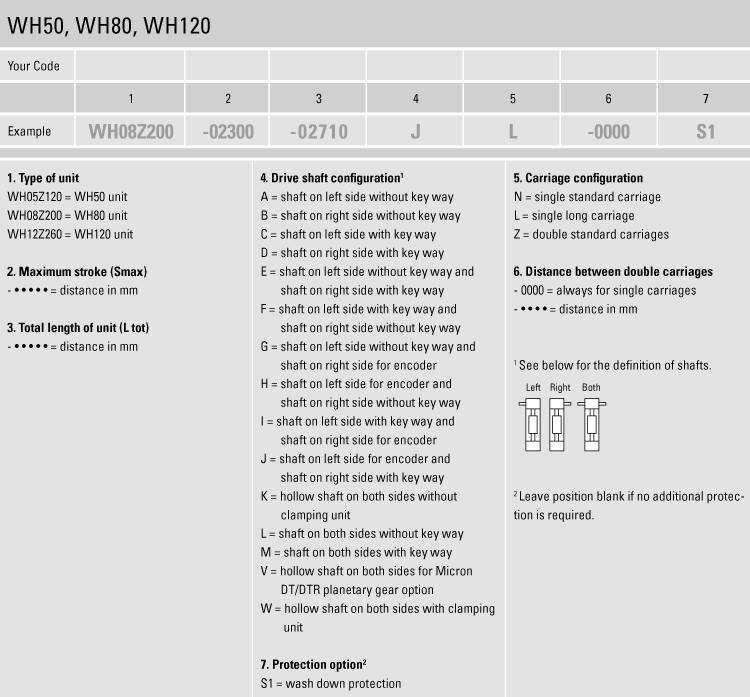

Sipariş Kodu

Teklif Al

Performans	Değer
Input speed, maximum	2308 RPM
Maximum Acceleration	40 m/s²
Maximum Linear Speed	10 m/s
Repeatability	0.05 mm
