Linear Bearing, Ball Bushing only, Extra Rigid, 2 in, Open, Not Self-aligning, Adjustable, Dry Pack; Use with 2 in Diameter Class XL Shaft in continuously supported applications

Lead Time:  10 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • The Extra Rigid XR Ball Bushing bearing is designed to maximize load carrying capacity while minimizing deflection.
  • For use with XL class Shafting.

Boyutlar

dimensions
BoyutDeğer
[d] Shaft, Nominal Diameter2 in
[Alpha]54 °
[C] Length Along Axis3.970 / 4.000 in
[D] Recommended Housing Bore3.0000 in
[D], Nominal3.0 in
[E]1 in
[F] Retention Hole Dia1.27 in
[G]0.31 in
[H]3.36 in

Özellikler

ÖzelliklerDeğer
Adjustable/Not AdjustableAdjustable
Closed/OpenOpen
Lubrication OptionDry Pack
MaterialSteel; Plastic
Number of Ball Circuits
Self AlignmentNot Self-aligning
Temperature Max185 °F
Use with shafting ClassClass XL
Weight1.3 lb

Performans

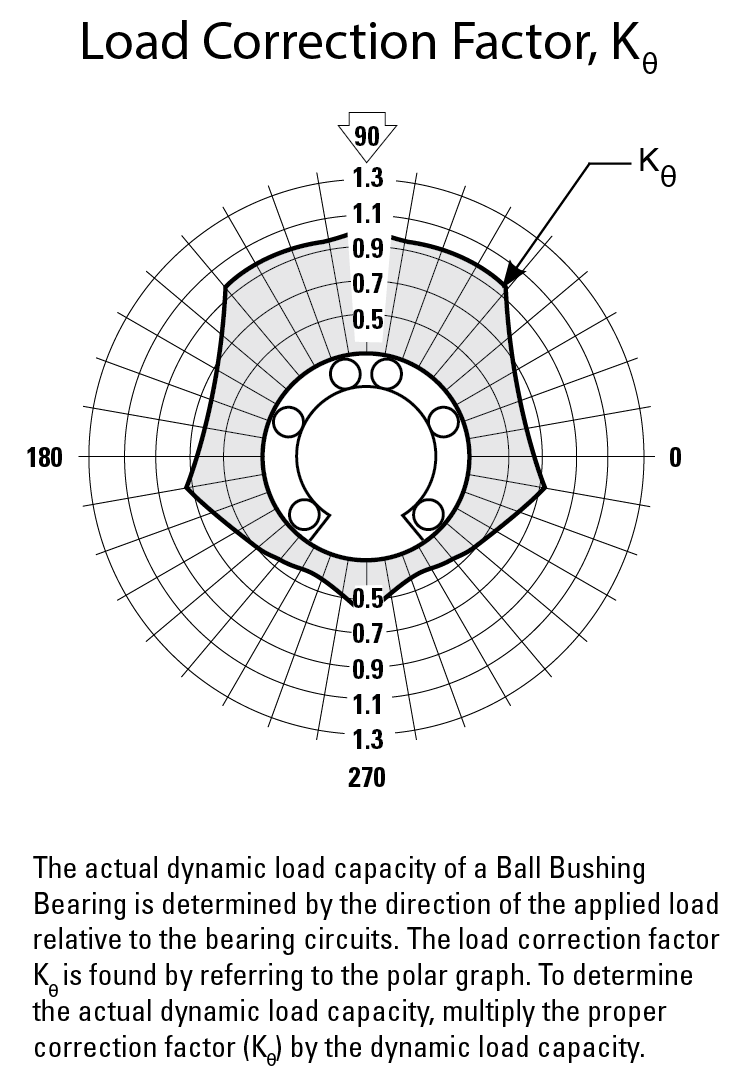

performance graphic
performance graphic
performance graphic
PerformansDeğer
Load Capacity, Dynamic4500 lbf
