XCT6X1V

XCT6X1V
XCT6X1V

Lead Nut Only, XC Style, Advanced, Inch Thread Mount, "V" thread, 6 mm X 1 mm, Anti-Backlash, RH, Acetal, 10 lbf Design Load

Lead Time:  3 Days
each Costs associated with shipping, packaging, and import taxes/duty not included.

  • The XC Model Anti-Backlash assembly is the most advanced Anti-Backlash nut design. The unique patented† ActiveCAM™ accomplishes high axial stiffness, zero backlash and the absolute minimum drag torque. This advantage produces assemblies that cost less, perform better and last longer.
  • The ActiveCAM™ automatically adjusts for wear insuring zero backlash for the life of the nut.

측정

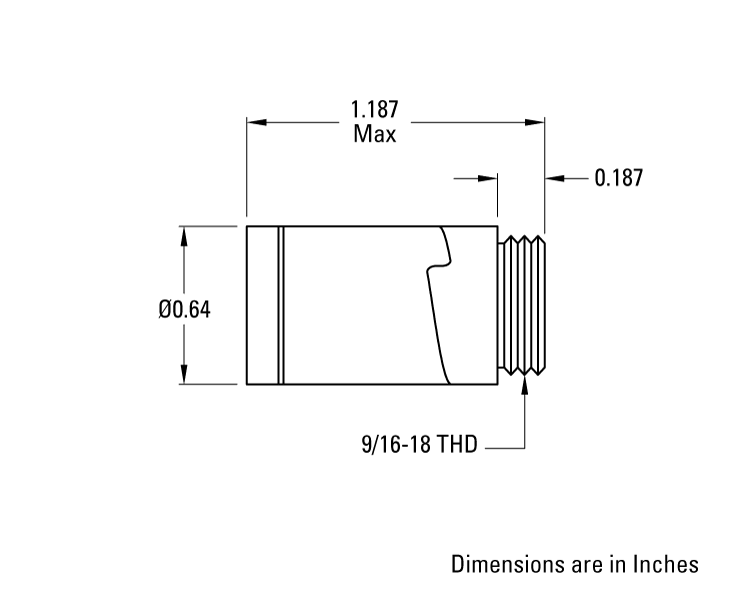

dimensions
측정 항목
Diameter, Nominal Screw6 mm
Nut Dia0.64 in
Nut Length1.18 in
travel per shaft rev1 mm

명세서

명세서
MaterialAcetal
PreloadAnti-Backlash
Temperature Max180 °F
Thread DirectionRH

성능

공연
Design Load10 lbf
