SCB8TWN-NBCR

SCB8TWN-NBCR
SCB8TWN-NBCR

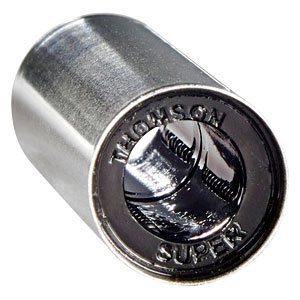

Linear Bearing, Cartridge, Super, 0.5 in, Closed, Twin, Self-aligning, Nylon Balls, Corrosion Resistant; Use with 0.5 in Diameter Class L Shaft in end supported applications

Lead Time:  2500 Days

  • Cartridge bearings are designed to be installed into a soft or slightly out-of-round housing.
  • The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.
  • Radially floating bearing plates. When installed in an adjustable housing, the Super Ball Bushing Bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement.
  • For use with L class, end supported Shafting.

측정

dimensions
측정 항목
[d] Shaft, Nominal Diameter0.5 in
[C] Length Along Axis2.745 / 2.755 in
[D] Recommended Housing Bore0.908 / 0.910 in
[D], Nominal0.908 in

명세서

명세서
Adjustable/Not AdjustableNot Adjustable
Closed/OpenClosed
Corrosion Resistant OptionCorrosion Resistant
MaterialSteel; Plastic
Number of Ball Circuits
Nylon Ball or Alternating Nylon BallNylon Balls
Self AlignmentSelf-aligning
Single/TwinTwin
Temperature Max185 °F
UPC Number662486264903
Use with shafting ClassClass L
Weight0.12 lb

성능

performance graphic
performance graphic
performance graphic
공연
Load Capacity, Dynamic51 lbf
