GSC25x0050

GSC25x0050
GSC25x0050

Lead Nut Only, GSC Style, Cylindrical, 0.250 in X 0.050 in, Non-Preloaded, RH, Acetal nut body with all stainless steel internal components, 45.0 lbf Design Load

Lead Time:  2500 Days

  • Nut only, Screw is a separate part number
  • Composite nut materials offer outstanding lubricant capability and low wear

측정

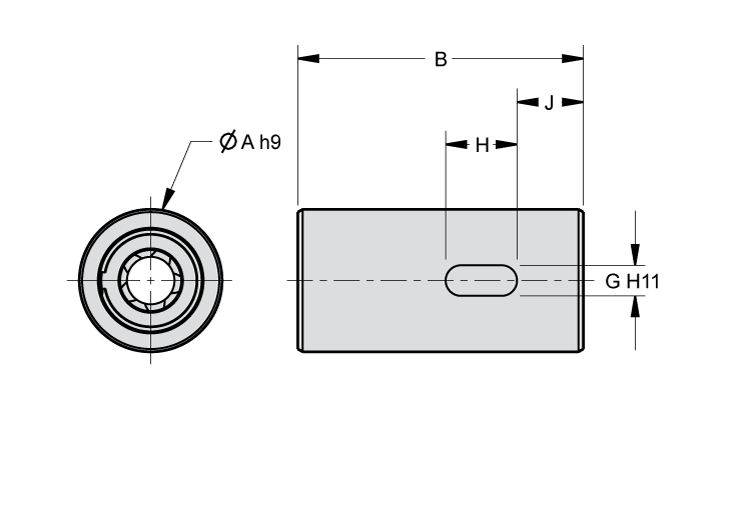

dimensions
측정 항목
[A] Diameter0.5 in
[B]1 in
[G]0.125 in
[H]0.25 in
[J]0.237 in
Diameter, Nominal Screw0.25 in
travel per shaft rev0.05 in

명세서

명세서
Efficiency %40
MaterialAcetal nut body with all stainless steel internal components
PreloadNon-Preloaded
Temperature Max150 °F
Thread DirectionRH

성능

공연
Design Load45 lbf
Max Moment Load47.5 in-lbs
